Remote Control MPPT Solar Charge Controller Meter Monitor RM 6 For MC Series
Product Overview
In order to solve the problem of LCD display need to be installed outside control box or car ,like the application in RV project ... in practical application scenarios, SRNE developed a new-generation remote display unit RM-6 for MC series MPPT
controllers is an associated display device which supports both the latest communication protocol and the voltage technology standard of solar controllers.
With a graphical design, the main menu is artistic as well as informative: it can display up to 10 parameters and states. Employs two indicator lights to indicate controller abnormalities and communication errors respectively. A backlight time setting function is available. With no need of an external power source, connection with a controller by means of a data cable will be enough to enable the unit to be powered . Boasts an industrial grade design and excellent anti-interference capacity, the product can function well in various tough conditions.
Electric Parameters
| Type | RM-6 |
| Applicable models of controller | MC2420N10/MC2430N10 MC2440N10/MC2450N10 |
| Input voltage | 5V-12V |
| Standby power consumption | < 0.03W |
| Operating power consumption | < 0.04W |
| Fixed baud rate | 9600bps |
| Communication mode | TTL |
| Interface type | PH2.0 |
| Connection cable length | 1.5M |
| Operating temperature | -35℃ ～ +65℃ |
| IP rating | IP32 |
| Weight | 90g |
| Altitude | ≤ 3000M |
| Dimensions | 104.5*55.5*11.8mm
|

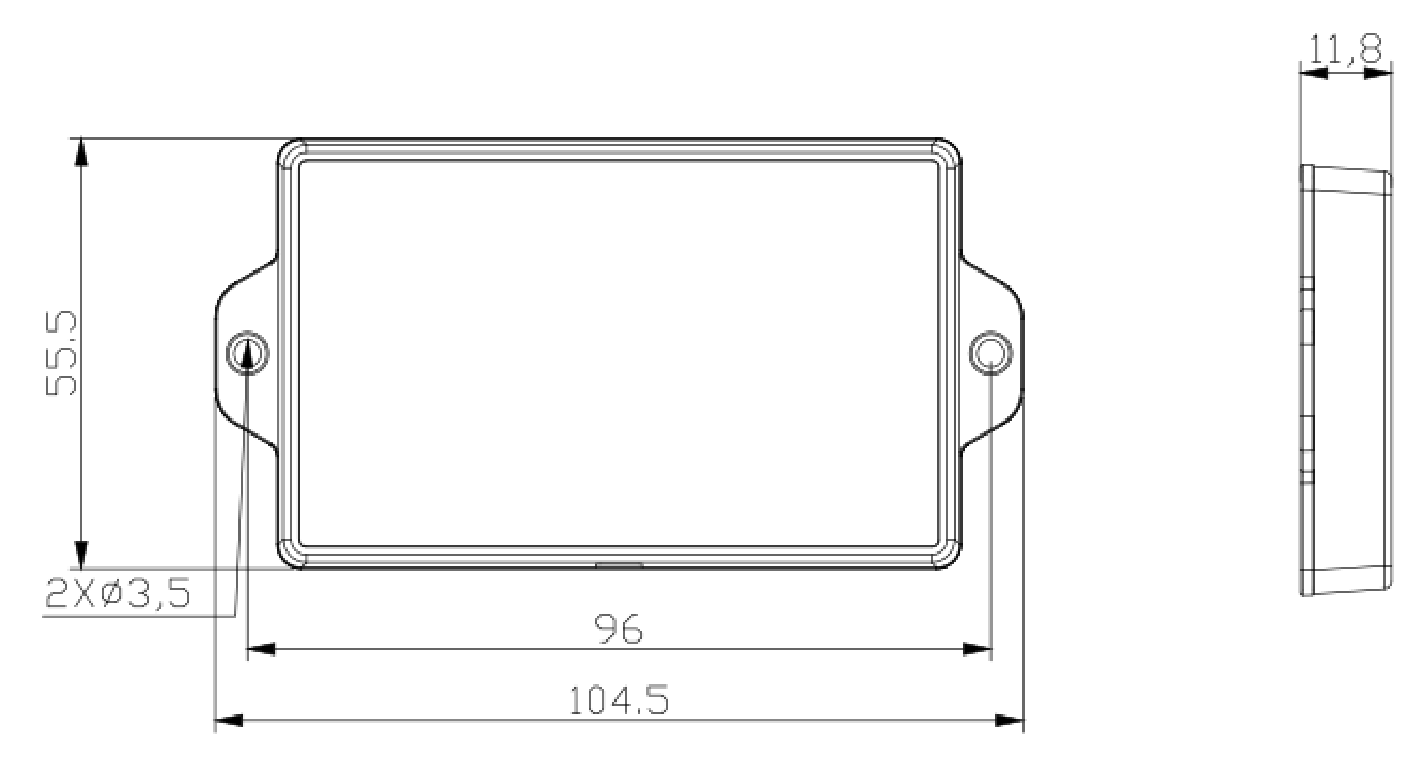

Product dimensions: 104.5*55.5*11.8mm
Installation dimensions: 96*φ3.5mm
Why choose us?
SRNE, as a high-tech enterprise with the government support ,and with own R&D team as well as factory, has become the famous brand and the experts of PV storage management and control, we always insist on good quality, professional service and leading technology. Besides, customer can purchase premium products with favorable prices from us.
Our R&D team and service: in SRNE, there' re some technicians having more than 10 years experience in the field of solar controller and all the products we design are the trend of market development.
Our tenet is continuously in pursuit of warm customer service.
FAQ:
Q: what kind of certificates you have for your solar controllers ?
SRNE:Our solar controller has CE,ROHS,ISO9001 certificates approved.
Q: Are you a manufacturer or trading company?
SRNE:We are a state-level high-tech enterprise that integrates pluralism, R&D and manufacturing as one with PV controller,PV
inverter,PV energy storage oriented.And we have our own factory.
Q: Can I buy one sample for testing?
SRNE:Sure,we have a 8 years experience R&D team and in timely after sale service,can help u fix any technicial problem or confusion.
Q: How are about the delivery?
SRNE:
Sample:
1-2 working days
Order: within 7 working days depending on the order quantities
OEM Order: 4-8 working days after confirming the sample
Q: How're about your customers service?
SRNE:All solar controllers will be tested strictly one by one before leaving factory,And the defective rate is
below 0.1%.we do try our best to provide a good customer service.
