SRNE Solar Panel Regulator Charge Controller 12V 24V 20A 3 Stage PWM Charging
SRNE PWM solar charge Controller 12V/24V 20A With one 5V, 1A USB port
Product Overview
An upgraded 3-stage PWM charging algorithm is adopted. Application of an equalizing charging to the battery periodically or when over discharged, can effectively prevent the battery from non-equalization and sulfuration, thus extending the battery's service life.
With abundant LCD display content, such as Battery voltage, Battery capacity, Charge current, Discharge current, Temperature, load mode and Error code etc.
Designed 5 different working modes for choosing, such as Light control mode, Light + time control mode, Manual control mode, debugger mode and Normal on mode. Also there is a 5V, 1A USB port for mobile phone charging.
Various of protections make SR-HP2420-S more reliable, it widely apply to portable solar charge box, BIPV system.
Application:
Ideal for off-grid solar lighting system that needs light and timer control
Solar street light system
Solar garden light system
Solar billboard
Solar detection equipment etc.
Electric Parameters
| Model | HP2420-S |
| Rated current | 20A |
| Current display function | Yes |
| System voltage | Automatic recognition of 12 V/ 24 V |
| No-load loss | < 10mA/12V；< 12mA/24V |
| Max. Solar energy input voltage | <55V |
| Max. voltage at the battery end | <35V |
| Overvoltage protection | 17.0V；×2/24V； |
| Equalizing charging voltage | 14.6V；×2/24V； |
| Boost charging voltage | 14.4V；×2/24V； |
| Floating charging voltage | 13.8V；×2/24V； |
| Charging recovery voltage | 13.2V；×2/24V； |
| Over-discharge recovery voltage | 12.6V；×2/24V； |
| Over-discharge voltage | 11.1V；×2/24V； |
| Equalizing charging interval | 30days |
| Equalizing charging time | 1H |
| Boost charging time | 2H |
| Temperature compensation | -3.0mV/℃/2V |
| Light control voltage | Light control on 5V, ×2/24V； light control off 6V, ×2/24V； |
| Light control judgment time | 1minute |
| Operating temperature | -25℃ to +55℃； |
| IP protection degree | IP30 |
| Net weight | 160g |
| Protection functions | Solar panel short circuit and reverse-connection protection |
| Over-temperature, overload and short circuit protection |

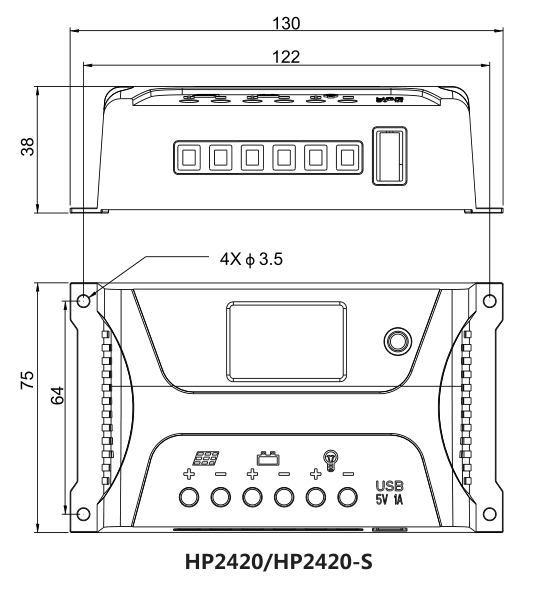

| Dimensions | 130×75×38 (mm) |
Why choose us?
SRNE, as a high-tech enterprise with the government support ,and with own R&D team as well as factory, has become the famous brand and the experts of PV storage management and control, we always insist on good quality, professional service and leading technology. Besides, customer can purchase premium products with favorable prices from us.
Our R&D team and service: in SRNE, there' re some technicians having more than 10 years experience in the field of solar controller and all the products we design are the trend of market development.
Our tenet is continuously in pursuit of warm customer service.
FAQ:
Q: what kind of certificates you have for your solar controllers ?
SRNE:Our solar controller has CE,ROHS,ISO9001 certificates approved.
Q: Are you a manufacturer or trading company?
SRNE:We are a state-level high-tech enterprise that integrates pluralism, R&D and manufacturing as one with PV controller,PV
inverter,PV energy storage oriented.And we have our own factory.
Q: Can I buy one sample for testing?
SRNE:Sure,we have a 8 years experience R&D team and in timely after sale service,can help u fix any technicial problem or confusion.
Q: How are about the delivery?
SRNE:
Sample:
1-2 working days
Order: within 7 working days depending on the order quantities
OEM Order: 4-8 working days after confirming the sample
Q: How're about your customers service?
SRNE:All solar controllers will be tested strictly one by one before leaving factory,And the defective rate is
below 0.1%.we do try our best to provide a good customer service.
